Model NO.: BM817
-
Processing Type: Shaping Metal
-
Mould: Simple Single Process Dies
-
Fine Blanking: Open
-
Industry: Metal Stamping Parts
-
Customized: Customized
-
Size: as Drawing
-
Sample Time: 7 Days
-
Company Location: Ningbo
-
Transport Package: Safe Export Package
-
Origin: Ningbo
-
Type: Cold Stamping
-
Material: Cold Steel
-
Surface Processing: Electroplating
-
Process: Separation Process
-
Tolerances: 0.2mm
-
Name: Customized SPCC Irregular Shape Stamping Part
-
Tolerance: +/-0.1mm
-
Delivery Time: 30 Days
-
Trademark: Boming
-
Specification: Customized
-
HS Code: 7616991090
Name:Â Customized SPCC irregular shape stamping part
1. Working Process:
* Sample: R&D department control sample process directly. Â Save time and directly adjust working process. Sample time: 7-10days.
* Â Production: R&D department finish working process drawing. Production department proceeding and IPQC proceeded. QC/Package department check final quality and finish package together.
* Â All shipped pats are almost 100% checked by QC/Package department.
2. Equipment:
*Equipment: laser cutting, cnc punch machine, bending, stamping machines, spot welding, arc welding, laser welding etc.
3.Quality Control Process
*In-come material checking
*Quality controal in processing(IPQC). Â 2 QC worker checking during production every day.
* Final quality control during package(FQC).
4. Production ability
| Material |
Working Process |
Finish |
SPCC
SGCC
Stainless Steel Sheet
Aluminum Sheet |
Stamping
Sheet metal
Laser Cutting
CNC Punch
Bending
Spot welding
Laser welding
Arc Welding |
zinc plateing
powder coating
black anodized |
5. You will get
* Competitive Price Of CNC Precision Machinery part
* Good Quality Assurance
* In Time Sampling & In Time Shipment
* Quality Guarantee
* Free Sample Can Be Provided Some Time
* Low MOQ
* Reply in 24 hours and fast quotaion
6. Parts we can do
*Sheet metal parts: cabinet, metal box, storage cabinet, mail box, computre box, communication metal box, led carrier, metal fabriction
*Stamping parts: cold steel stamping, galvanized steel stamping, aluminum stamping, aluminum extrusion stamping, and other different kinds of stamping parts.
* Stamping Mold Development.
Â
Description

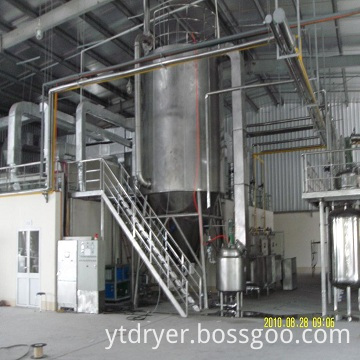

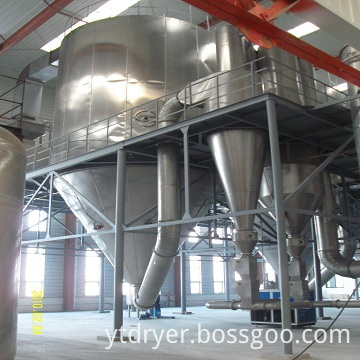

ZPG spray dryer for Chinese medicine extract utilizes high-speed centrifugal atomizer to disperse the materials into tiny droplets, and fully contact with the hot air in order to complete constant dry and obtain the powder products. This centrifugal spray drying equipment is suitable for drying Chinese medicines and plant extracts with low melting point and high sugar content. It can prevent the materials from coking, caking or sticking to the wall. Our spray dryer for Chinese medicine extract meets the GMP standards.
Features
1.This centrifugal spray drying equipment has rapid drying speed, generally only needs a few seconds. It is characterized by instant drying.
2.The temperature of liquid drops is relatively low in drying process, so our spray dryer is especially suitable for drying thermosensitive materials.
3.The tower body and cyclone adopt automatic vibrating device, so as to prevent the accumulation of the material in the tower.
4.This spray dryer for Chinese medicine extract is equipped with interlayer cooling structure, which can effectively prevent the materials from sticking to the walls and coking phenomenon. The product quality and yield can be improved.
5.The special pneumatic conveying system can timely separate the finished products from the hot moist are in the system, so as to avoid moisture absorption or agglomeration of the finished products.
Technical Parameters of Spray Drying Equipment
|
Model
|
ZPG-5
|
ZPG-10
|
ZPG-25
|
ZPG-50
|
ZPG-80
|
ZPG-100
|
ZPG-150
|
ZPG-200
|
ZPG-300
|
|
Water Evaporation (kg/h)
|
5
|
10
|
25
|
50
|
80
|
100
|
150
|
200
|
300
|
|
Handling Capacity (kg/h)
|
6
to 7
|
12
to14
|
25
to 34
|
50
to 68
|
80
to 108
|
100
to 135
|
150
to 203
|
200
to 270
|
300
to 406
|
|
Solid Content of Wet Material (%)
|
18
to 25
|
|
Finished Product Quantity (kg/h)
|
1
to 2
|
2
to 4
|
4.8
to 7.2
|
9.2
to 14
|
14.8
to 22.4
|
18.4
to 28
|
24
to 42
|
36.8
to 56.4
|
55
to 85
|
|
Moisture Content of Finished Product (%)
|
3
to 5
|
|
Electric Power (kw)
|
36
|
45
|
63
|
99
|
132
|
153
|
204
|
246
|
330
|
|
Heating Source
|
Steam
+ electricity
|
|
Product Recovery Method and Efficiency
|
Two-stage
cyclone dust collector or one-stage cyclone dust
collector and wet dust collector 95%
|
|
Automatic Instrument
|
Exhaust
temperature indicator, self-adjusting controller
|
|
Inlet Air Temperature (℃)
|
150
to 200
|
|
Outlet Air Temperature (℃)
|
80
to 100
|
|
Dimensions (mm)
|
L
|
500
|
5500
|
7000
|
8000
|
9800
|
11000
|
12200
|
14000
|
15000
|
|
W
|
300
|
3500
|
4000
|
5000
|
5700
|
6200
|
7000
|
7800
|
9000
|
|
H
|
4500
|
4600
|
5000
|
6500
|
7600
|
8100
|
9000
|
9850
|
11100
|
Yutong Drying Equipment Co., Ltd. is a high-tech enterprise specializing in spray drying machine, spray dryer for Chinese medicine extract, Grinding machine, Mixing Machine , Granulating Machine Extractor And Concentrator equipment. Yutong emphasizes scientific and technological innovation, and cooperate with many famous colleges to develop new products. We provide pre-sale and after-sale service for spray drying equipment. If you are interested in spray dryer for Chinese medicine extract or other drying machines, please feel free to contact us.
ZPG Herbal Extract Spray Drier
Pharmaceutical Spray Dryer, Pharma Dryer Machine, Ginseng Spray Drying Machine, Herbal Extract Spray Dryer, Licorice Liquorice Spray Dryer
